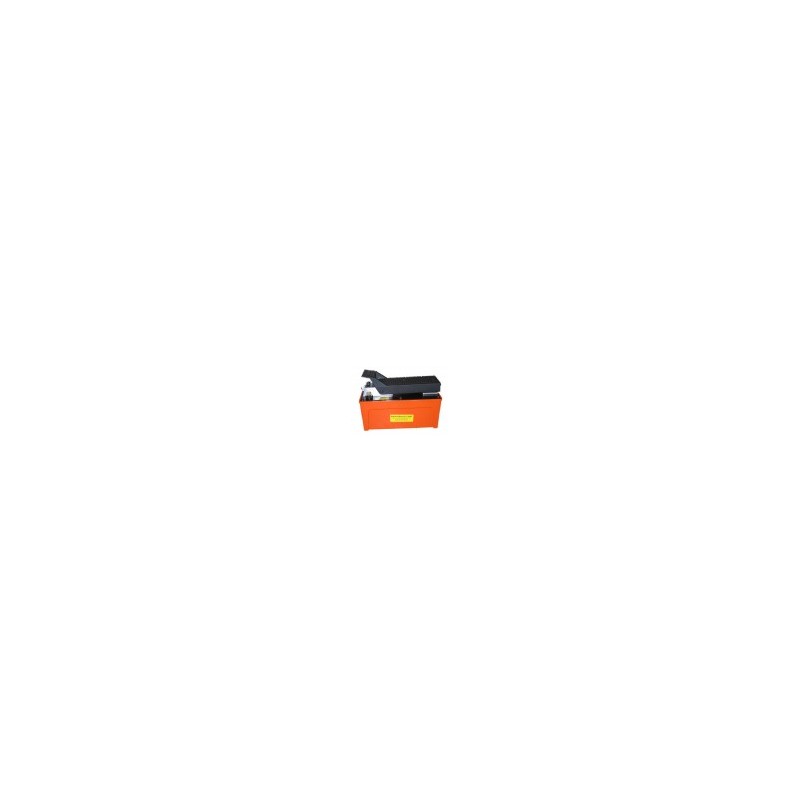

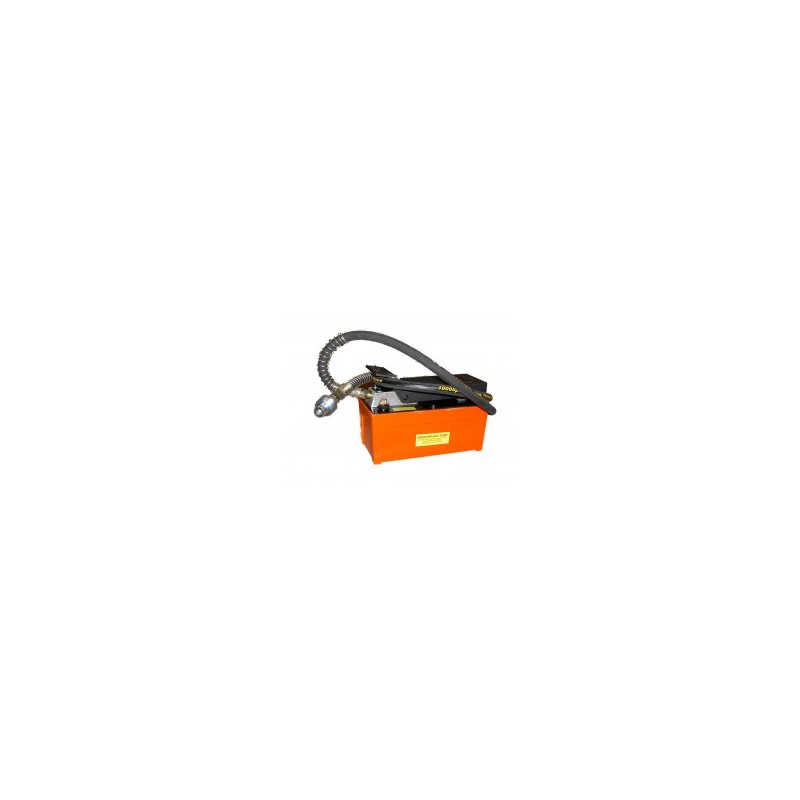

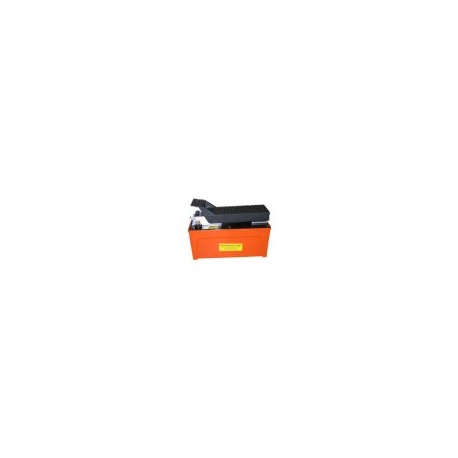

Air/Hydraulic Pump 10,000 psi

2054

New product

This hand or foot hydraulic air pump is designed to operate pneumatically. It is an ideal power source for various body, frame and alignment applications and can be used with different ram kits, shop presses  that operate with a hydraulic oil pressure requirement of up to 10,000 psi. This heavy duty hydraulic air pump connects via a 1/4" NPT air nipple and a 3/8" NPT hydraulic adaptor.

More details

Estimate shipping cost

Submit

$768.90

More info

Features:
  • Made of Durable Light-weight Corrosion-free Aluminium
  • Built-in Overload System prevents pump from being used beyond its safety capacity
  • Hand of Foot Activation Lever
  • Filter prevents contaminants from entering hydraulic system

Specifications:
  • Maximum output pressure: 10,000psi
  • Usable Hydraulic Fluid Capacity: 2.25 Litres
  • Operating air pressure: 90-145 psi
  • Air consumption: 7.5CFM @ 100 psi
  • Oil Delivery with No Load: 49.5 cu.in/min
  • Oil Delivery with Load: 7.6 cu.in/min
  • Input (Air) port thread: 1/4" -18 NPT
  • Output (Oil) port thread: 3/8" -18 NPT

Hydraulic hose and adaptors sold separately.
