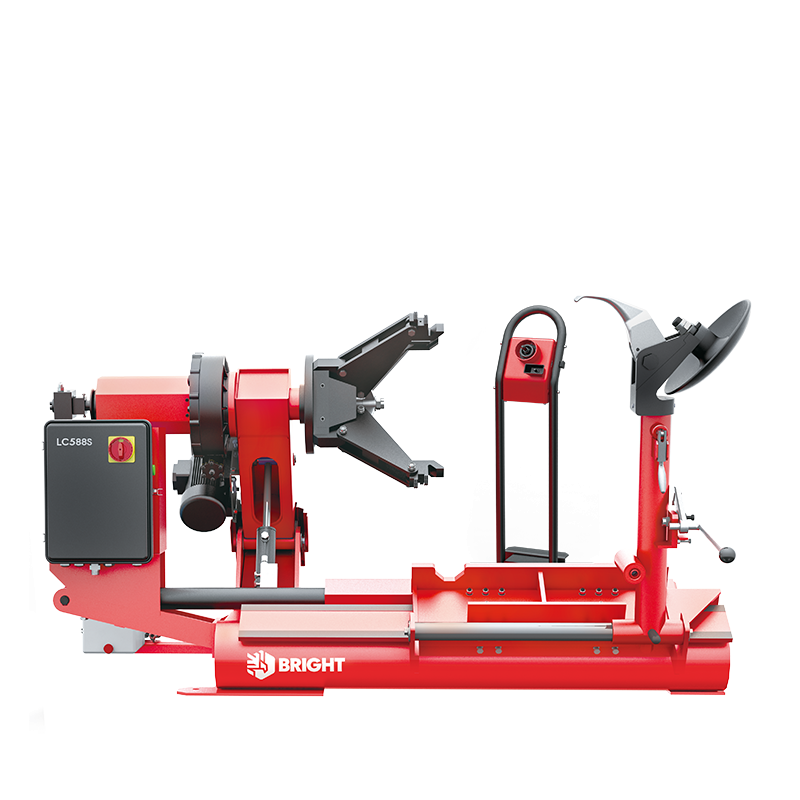

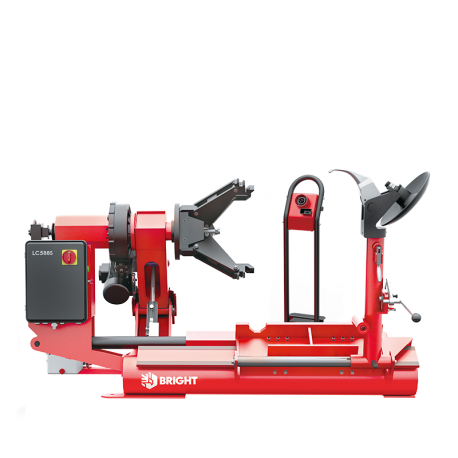

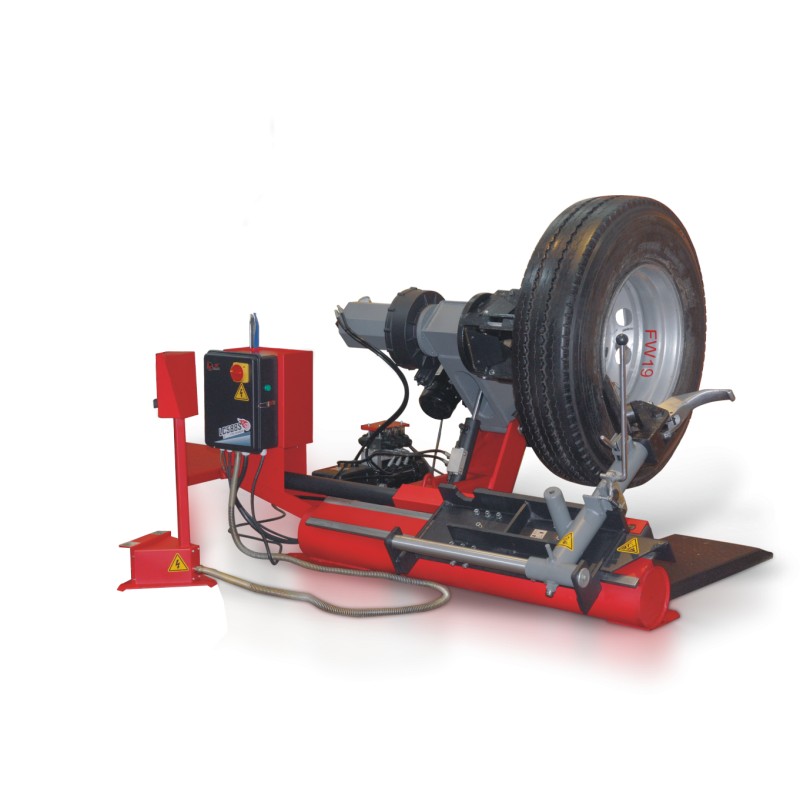

Truck Tyre Changer LC588S

LC588S

New product

Truck Bus Tractor Tyre Changer semi automatic

TECHNICAL DATA

  • Main Shaft Motor: 415V 3Ph 1.8 kw 50 Hz
  • Hydraulic Station Motor Power: 415V 3 Ph 1.5 kw 50 Hz
  • Rim Diameter: 14 inch ~ 26 inch
  • Max wheel assembly diameter: 1600 mm
  • Max wheel assembly width: 1000 mm
  • Hydraulic Power: 130 ~ 150 bar
  • Noise level: < 75 dB
  • Net Weight: 800KG
  • Dimension: 165 (W) x 210 (L) x 90 (H)

More details

1 Item

Warning: Last items in stock!

Estimate shipping cost

Submit

$8,495.00

More info

* Use efficient electro-hydraulic-powered design for trucks, buses, and tractor machinery.
* Super-duty electric motor and hydraulic drive for superior torque and wheel holding power.
* Self-centering hydraulic clamping chuck
* Heavy, tapered roller bearings, and a dual direction hydraulic motor provide smooth torque
* Quick positioning and locking mount / demount arm
* Hydraulic sliding carriage for positioning, bead loosening, mounting, and demounting procedures
* Single piece frame for superior rigidity
* Hydraulically operated spreader-type jaws ensure secure clamping of virtually all rims.
* Massive chuck spindle handles the heaviest loads
* Sturdy spindle, chuck and mount-demount head hydraulically rotates, raises, and lowers with simple operator controls
* Simple design is easy to use
* Very gentle on over-the-road tires and tubeless tires mounted on aluminum wheels

Comes with aluminium clamps to protect alloy rims.

Click on the link below for a video demo

https://www.youtube.com/watch?v=g0fP63VrFks
